Recently, I was reading about hyperparameter tuning.
I found out there are other methods for creating the list of possible hyperparameter values for hyperparameter tuning.
Photo by Denisse Leon on Unsplash
Before jumping into the discussion on hyperparameter tuning, let’s look at the difference between parameters and hyperparameters.
What is the difference between parameters and hyperparameters?
(Brownlee 2019) explained in one of his post that parameters are configuration variables that are internal to the model and the values can be estimated from the data.
On the other hand, hyperparameters are configuration that is external to the model and whose value cannot be estimated from data.
Hence, to find the set of hyperparameters that would give us the best model performance, we will perform hyperparameter tuning.
Hyperparameters tuning
In general, the hyperparameters tuning task includes the following 4 parts (Koehrsen 2018):
Objective function: a function that takes in hyperparameters and returns a score we are trying to minimize or maximize
Domain: the set of hyperparameter values over which we want to search
Algorithm: method for selecting the next set of hyperparameters to evaluate in the objective function
Results history: data structure containing each set of hyperparameters and the resulting score from the objective function
In this post, I will be focusing on how to create the hyperparameter domain.
Different methods in creating grids
There are two methods for creating the hyperparameter grids for model tuning purposes, which are regular grid and non-regular grid.
Regular grid
This is the typical approach to create the grids of tuning hyperparameters.
In this method, every combination of hyperparameters within the specified hyperparameter ranges is created for later model tuning.
Then, we will have to perform cross-validation on every set of hyperparameters defined in the grid to find the set of results that would give us the best model performance.
However, this is an extremely computationally expensive approach to searching for the best hyperparameter combinations.
Non-regular grid
Currently, tidymodels package allows different methods
to create non-regular grids, including:
Random grid
Latin hypercube sampling
Maximum entropy design
Random grid
(Koehrsen 2018) explained that grid search spends too much time evaluating unpromising regions of the hyperparameter search space.
This is where a random grid comes in handy.
The random grid generates independent uniform random numbers across the parameter ranges (Kuhn and Silge 2022).
Also, the random grid can usually find a good combination of hyperparameters in fewer iterations.
In other words, with fewer iterations, the random grids can find “good enough” combinations of hyperparameters.
Hence, this approach is more efficient compared to grid search.
Latin hypercube sampling
The idea of this sampling is interesting.
I felt (Zach 2020) did a great job in explaining the concept in an easier way to understand.

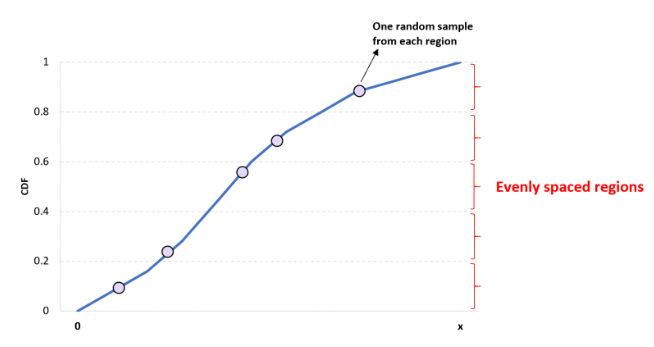

The author explained that the idea is divide a given CDF into n different regions and randomly choose one value from each region to obtain a sample of size n as shown below.
Latin Hypercube Sampling
In short, this method allows us to obtain random samples that are more reflective of the underlying distribution of the dataset.
Maximum entropy design
This approach aims to maximize the expected change in information, which maximizes the entropy of the observed responses at the point in the design (Santner, Williams, and Notz 2018).
Later in this post, I will be showing the created grids under different methods.
Demonstration
In this demonstration, I will be using the employee attrition dataset from Kaggle.
Nevertheless, let’s begin the demonstration!
Setup the environment
First, I will set up the environment by calling all the packages I need for the analysis later.
packages <- c('tidyverse', 'readr', 'tidymodels', 'themis', 'doParallel',
'ggpubr')
for(p in packages){
if(!require (p, character.only = T)){
install.packages(p)
}
library(p, character.only = T)
}
For this demonstration, we will be using an R package called
dials to create the list of hyperparameter
combinations.
After that, we will use tune package in
tidymodels to find the combinations of hyperparameters that
would give us the best model performance.
Import the data
First I will import the data into the environment.
df <- read_csv("https://raw.githubusercontent.com/jasperlok/my-blog/master/_posts/2022-03-12-marketbasket/data/general_data.csv") %>%
select(-c(EmployeeCount, StandardHours, EmployeeID))
I will set the random seed for reproducibility.
set.seed(1234)
Build a model
For simplicity, I will reuse the random forest model building code I wrote in my previous post.
You can refer to my previous post for the explanations of the model building.
df_split <- initial_split(df,
prop = 0.6,
strata = Attrition)
df_train <- training(df_split)
df_test <- testing(df_split)
df_folds <- vfold_cv(df_train, strata = Attrition)
ranger_recipe <-
recipe(formula = Attrition ~ .,
data = df_train) %>%
step_impute_mean(NumCompaniesWorked,
TotalWorkingYears) %>%
step_nzv(all_predictors()) %>%
step_dummy(all_nominal_predictors()) %>%
step_upsample(Attrition)
ranger_spec <-
rand_forest(trees = tune(),
mtry = tune()) %>%
set_mode("classification") %>%
set_engine("ranger")
ranger_workflow <-
workflow() %>%
add_recipe(ranger_recipe) %>%
add_model(ranger_spec)
Create dials
Next, I will start creating the different grids by using different methods.
Regular grid
I will use grid_regular function to create the regular
grid of tuning parameters.
To do so, I have included the hyperparameters to be included in the grid.
Note that the argument size is not an argument for
grid_regular function. Hence, I have used the argument
level instead.
Non-regular grid
Next, I will create the non-regular grids before plotting them to see how the values of the selected hyperparameters are different compared with one another.
Random grid
To create a random grid, I will use grid_random
function.
Note that I have indicated that I would like to have 49 randomly sampled points by indicating the size to be 49.
Latin hypercube sampling
Then, grid_latin_hypercube function is used to create
the grid.
Maximum entropy design
Lastly, I will use grid_max_entropy function to create
the non-regular grid.
Random grid - with fewer combinations than regular grid
To illustrate how a random grid can obtain a combination of hyperparameters with model performance “close enough” compared to the model performance of a regular grid, I will create a smaller random grid with only contains 24 combinations.

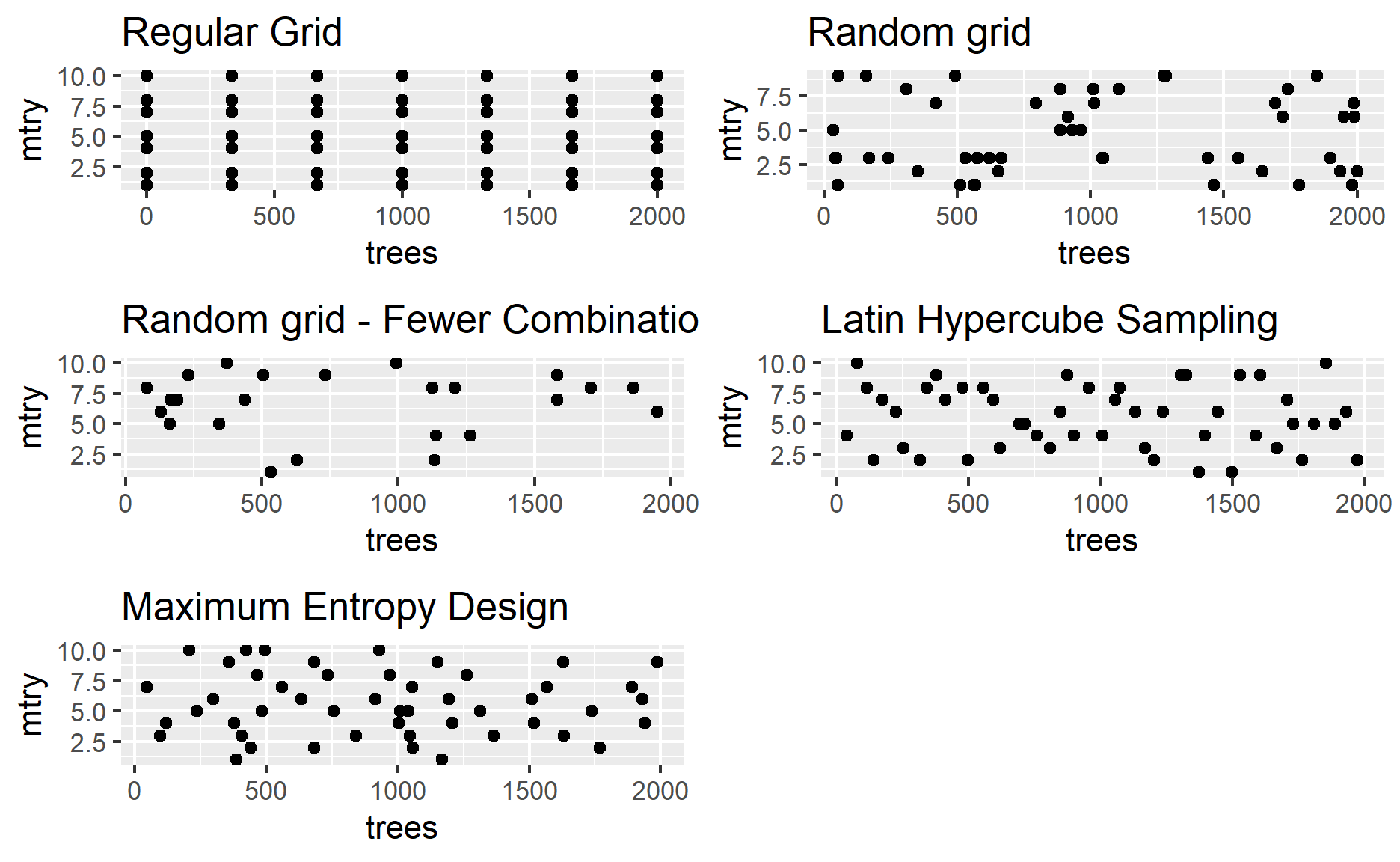

Visualize the points
Next, I will plot out the hyperparameter grids by using different approaches.
ggarrange(
ggplot(dials_regular, aes(x = trees, y = mtry)) +
geom_point() +
labs(title = "Regular Grid"),
ggplot(dials_random, aes(x = trees, y = mtry)) +
geom_point() +
labs(title = "Random grid"),
ggplot(dials_random_less, aes(x = trees, y = mtry)) +
geom_point() +
labs(title = "Random grid - Fewer Combinations"),
ggplot(dials_latin, aes(x = trees, y = mtry)) +
geom_point() +
labs(title = "Latin Hypercube Sampling"),
ggplot(dials_entropy, aes(x = trees, y = mtry)) +
geom_point() +
labs(title = "Maximum Entropy Design"),
ncol = 2,
nrow = 3
)
As what we can see in the graphs above,
Regular grid creates a grid of hyperparameters that are equally spaced out
The grids created under Latin hypercube sampling and maximum entropy are more spread out than random grid
Tuning hyperparameters
Once the values of hyperparameters to be tuned are created, we can start tuning the hyperparameters.
In this post, I will be using the grid search method in searching for
the best pairs of hyperparameters. As such, I will be using
tune_grid function.
Regular grid
To tune the parameters, I will pass the following objects into the function:
WorkflowobjectThe cross-validation datasets
Selected model metrics
Grids of tuning parameters created in the earlier step
Nevertheless, let’s start the hyperparameter tuning.
First, I will pass the created hyperparameter grids into the tuning function.
I will also indicate AUC should be used as the model metric during the hyperparameter tuning.
ranger_tune_grid <- tune_grid(ranger_workflow,
resample = df_folds,
metrics = metric_set(roc_auc),
grid = dials_regular)
Also, as stated on the documentation page, if no metric set is provided, following will be computed:
| Models | Default Metrics |
|---|---|
| Regression | RMSE & R squared |
| Classification | ROC curve & accuracy |
We could extract the model performance by passing the
tune_results object into collect_metrics
function.
I have also arranged the model performance in descending manner.
ranger_tune_grid %>%
collect_metrics() %>%
arrange(desc(mean))
# A tibble: 49 x 8
mtry trees .metric .estimator mean n std_err .config
<int> <int> <chr> <chr> <dbl> <int> <dbl> <chr>
1 4 1000 roc_auc binary 0.969 10 0.00540 Preprocessor1_M~
2 4 2000 roc_auc binary 0.968 10 0.00520 Preprocessor1_M~
3 4 1333 roc_auc binary 0.968 10 0.00518 Preprocessor1_M~
4 4 667 roc_auc binary 0.968 10 0.00546 Preprocessor1_M~
5 4 1666 roc_auc binary 0.967 10 0.00546 Preprocessor1_M~
6 5 667 roc_auc binary 0.967 10 0.00565 Preprocessor1_M~
7 5 1000 roc_auc binary 0.967 10 0.00544 Preprocessor1_M~
8 5 1333 roc_auc binary 0.967 10 0.00522 Preprocessor1_M~
9 4 334 roc_auc binary 0.967 10 0.00497 Preprocessor1_M~
10 5 2000 roc_auc binary 0.967 10 0.00554 Preprocessor1_M~

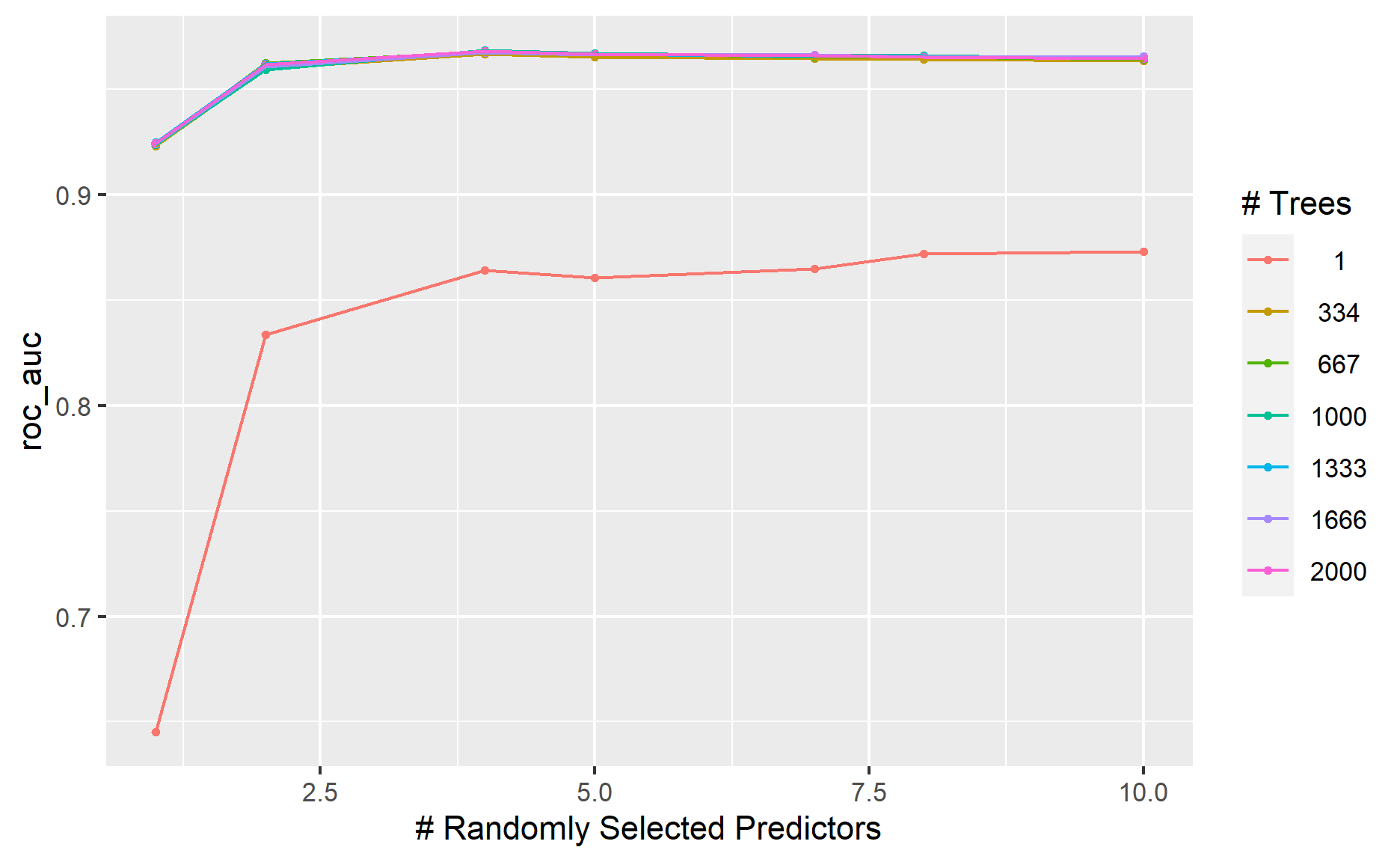

# ... with 39 more rowsTo illustrate the model results under different grids, we can pass
the object into autoplot function.
autoplot(ranger_tune_grid)
As shown in the result above, the AUC results for all trees seem quite similar, except when tree = 1.
The AUC results also increase when the number of randomly selected predictors.
Non-regular grid
Random grid
Next, I will perform hyperparameter tuning based on the random grid.
ranger_tune_random <- tune_grid(ranger_workflow,
resample = df_folds,
metrics = metric_set(roc_auc),
grid = dials_random)
Latin hypercube sampling
Similarly, I will pass the list of hyperparameter values generated by using the Latin hypercube sampling method into the tuning function.
ranger_tune_latin <- tune_grid(ranger_workflow,
resample = df_folds,
metrics = metric_set(roc_auc),
grid = dials_latin)
Maximum entropy design
Lastly, I will perform tuning by using the grid created by using maximum entropy design.
ranger_tune_entropy <- tune_grid(ranger_workflow,
resample = df_folds,
metrics = metric_set(roc_auc),
grid = dials_entropy)
Random grid - with fewer combinations than regular grid
I will also perform tuning on the smaller random search grids to check whether the model performance would be affected if we use a smaller grid.
ranger_tune_random_less <- tune_grid(ranger_workflow,
resample = df_folds,
metrics = metric_set(roc_auc),
grid = dials_random_less)
Compare results
Next, I will compare the model performance under the different grids created under different methods.
To do so, I will first create an empty tibble, bind the model performances and sort the results in descending manner.
tibble() %>%
bind_rows(show_best(ranger_tune_grid, n = 1) %>%
mutate(dials_method = "Regular Grid")) %>%
bind_rows(show_best(ranger_tune_random, n = 1) %>%
mutate(dials_method = "Random grid")) %>%
bind_rows(show_best(ranger_tune_random_less, n = 1) %>%
mutate(dials_method = "Smaller random grid")) %>%
bind_rows(show_best(ranger_tune_latin, n = 1) %>%
mutate(dials_method = "Latin Hypercube Sampling")) %>%
bind_rows(show_best(ranger_tune_entropy, n = 1) %>%
mutate(dials_method = "Maximum Entropy Design")) %>%
arrange(desc(mean)) %>%
select(-c(std_err, .config, .metric, .estimator))
# A tibble: 5 x 5
mtry trees mean n dials_method
<int> <int> <dbl> <int> <chr>
1 4 1517 0.969 10 Maximum Entropy Design
2 4 900 0.969 10 Latin Hypercube Sampling
3 4 1000 0.969 10 Regular Grid
4 4 1266 0.968 10 Smaller random grid
5 6 1951 0.968 10 Random grid From the result above, it seems like the model performances are more or less similar under the different methods of creating dials.
Also, despite I have reduced the number of hyperparameter combinations of the smaller random grid by half, the AUC results between this random grid and the regular grid are rather similar.
This illustrates the point that a random grid can find a “close enough” set of hyperparameters with fewer combinations to search. This makes this approach more computation efficient than regular grid search.
Conclusion
That’s all for the day!
Thanks for reading the post until the end.
Feel free to contact me through email or LinkedIn if you have any suggestions on future topics to share.
Refer to this link for the blog disclaimer.
Till next time, happy learning!
