In this post, I will continue my quest in acquiring causal inference knowledge.

I will be exploring instrumental variable.

What is instrumental variable?

Instrumental variable is one of the method in helping us isolating the front door so that we can estimate causal effect.

Below is how the author explained the instrumental variable (Bobbitt 2020):

An instrumental variable is a third variable introduced into regression analysis that is correlated with the predictor variable, but uncorrelated with the response variable.

I personally quite like how this author explained instrumental variable as well (Huntington-Klein 2023):

Instrumental variables are more like using a mold because instead of trying to strip away all the undesirable variation using controls, it finds a source of variation that allows you to isolate just the front-door path you are interested in.

(Bobbitt 2020) mentioned in his post that instrumental variable should only be used if it meets the following criteria:

It is highly correlated with the predictor variable.
It is not correlated with the response variable.
It is not correlated with the other variables that are left out of the model (e.g. proximity is not correlated with exercise, diet, or stress).

Why uses this method?

To use instrumental variable to estimate causal effect, we will perform a two-stage least square.

First, we use the instrumental variable to predict the treatment variable.

Then, we will use the predicted values of the treatment variable from first model to predict the outcome.

Important considerations

To use instrument variable, it would need to fulfill 3 criteria:

Relevance
Excludability
Exogeneity

Demonstration

In this post, I will be using the following packages to perform the analysis.

pacman::p_load(tidyverse, estimatr, broom, modelsummary, janitor)

Import Data

I will be using the fake policy dataset shared by Professor Andrew Heiss on his teaching website. I have also made reference to the materials and problem set he posted on the course website.

Refer to this link for the dataset.

housing <- read_csv("data/public_housing.csv") %>%
  clean_names() %>%
  mutate(race = as.factor(race)
         ,education = as.factor(education)
         ,marital_status = as.factor(marital_status))

In this analysis, we will attempt to measure how does public housing affect the health status.

Causal Effect

Forbidden Model

We are given the omitted variable in the data. Therefore, I will first build a model by using public_housing and health_behavior variables to measure the causal effect.

model_forbidden <-
  lm(health_status ~ public_housing + health_behavior
     ,data = housing)

tidy(model_forbidden)

# A tibble: 3 × 5
  term            estimate std.error statistic   p.value
  <chr>              <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)        0.555   0.0637       8.71 1.21e- 17
2 public_housing     0.229   0.00332     68.9  0
3 health_behavior    0.268   0.00791     33.9  1.62e-168

Naive Model

As mentioned in the earlier section, often one of the challenges in performing causal inference is to remove the confounding effect.

The result could be misleading if we ignore the confounding effect.

Therefore, this is how the model result would look like if we just use public_housing in measuring the causal effect.

model_naive <-
  lm(health_status ~ public_housing
     ,data = housing)

tidy(model_naive)

# A tibble: 2 × 5
  term           estimate std.error statistic  p.value
  <chr>             <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)       1.25    0.0885       14.2 1.09e-41
2 public_housing    0.322   0.00272     118.  0

Instrumental Variable

As discussed in the earlier section, the instrument variable would need to fulfill 3 criteria:

Relevance
Excludability
Exogeneity

Relevance

To check this, we could run a simple linear regression of the variable (i.e., public_housing in this context) and respective instrumental variables.

var_list <-
  list("supply", "parents_health_status", "waiting_time")

for(i in var_list){
  print(i)

  lm(public_housing ~ get(i)
     ,data = housing) %>%
    summary() %>%
    print()

}

[1] "supply"

Call:
lm(formula = public_housing ~ get(i), data = housing)

Residuals:
    Min      1Q  Median      3Q     Max
-30.753  -6.753  -0.024   6.976  29.976

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  27.1075     1.0675  25.394  < 2e-16 ***
get(i)        0.7291     0.2020   3.609 0.000323 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 10.33 on 998 degrees of freedom
Multiple R-squared:  0.01288,   Adjusted R-squared:  0.01189
F-statistic: 13.02 on 1 and 998 DF,  p-value: 0.0003228

[1] "parents_health_status"

Call:
lm(formula = public_housing ~ get(i), data = housing)

Residuals:
     Min       1Q   Median       3Q      Max
-29.6612  -6.9510  -0.1612   7.2593  30.6086

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  27.7721     1.2885   21.55   <2e-16 ***
get(i)        0.2699     0.1120    2.41   0.0161 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 10.37 on 998 degrees of freedom
Multiple R-squared:  0.005785,  Adjusted R-squared:  0.004789
F-statistic: 5.807 on 1 and 998 DF,  p-value: 0.01614

[1] "waiting_time"

Call:
lm(formula = public_housing ~ get(i), data = housing)

Residuals:
     Min       1Q   Median       3Q      Max
-28.3606  -5.7683   0.1699   5.9475  24.9969

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  6.99142    1.14096   6.128 1.28e-09 ***
get(i)       0.95058    0.04429  21.464  < 2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 8.601 on 998 degrees of freedom
Multiple R-squared:  0.3158,    Adjusted R-squared:  0.3151
F-statistic: 460.7 on 1 and 998 DF,  p-value: < 2.2e-16

From the p-value of the results, it seems like variables supply and waiting_time are somewhat correlated with the public_housing.

Also, the F-statistics for both supply and waiting_time are also above 10, suggesting that these two variables pass the relevance test.

Excludability

There is no statistical test available for excludability test.

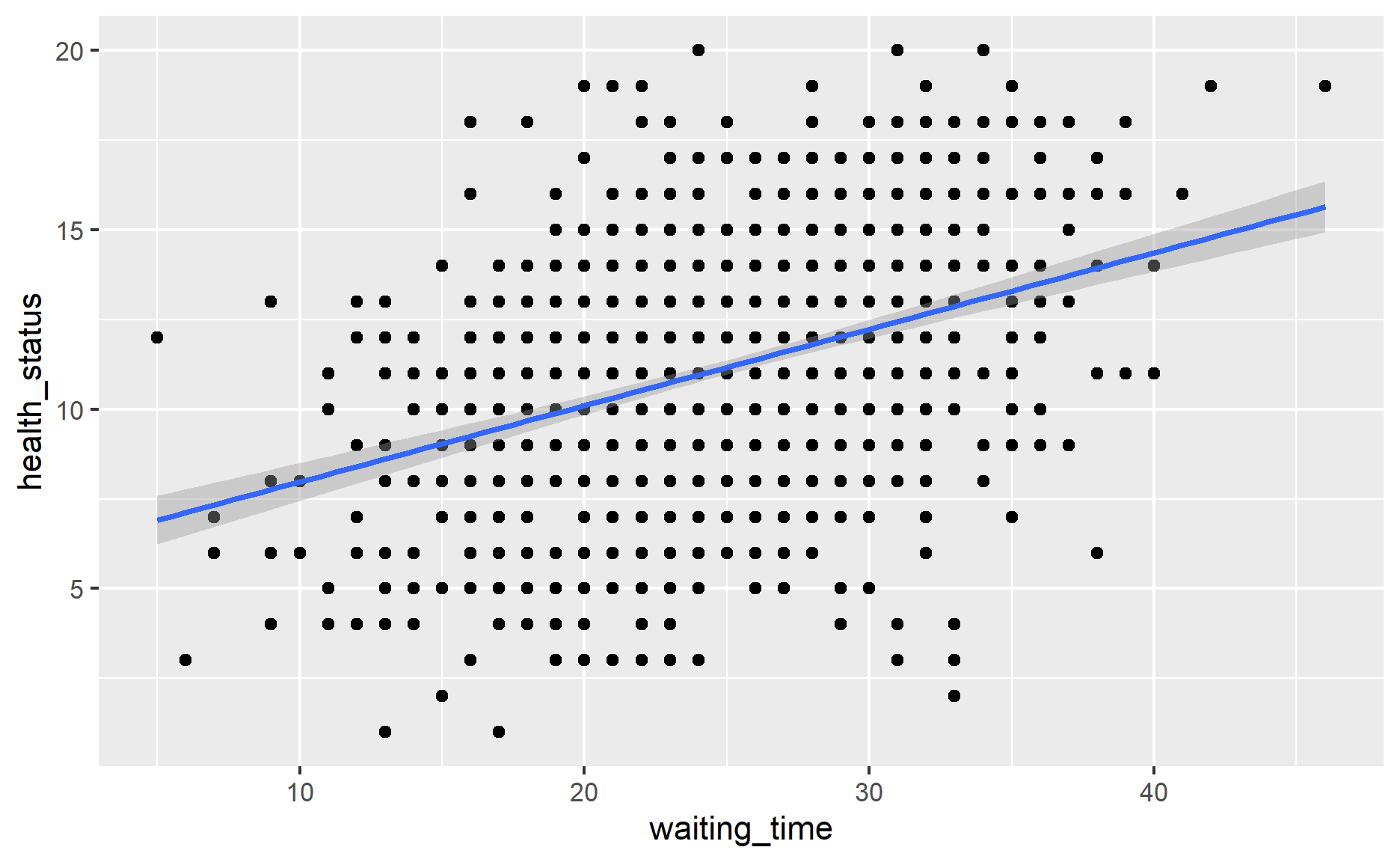

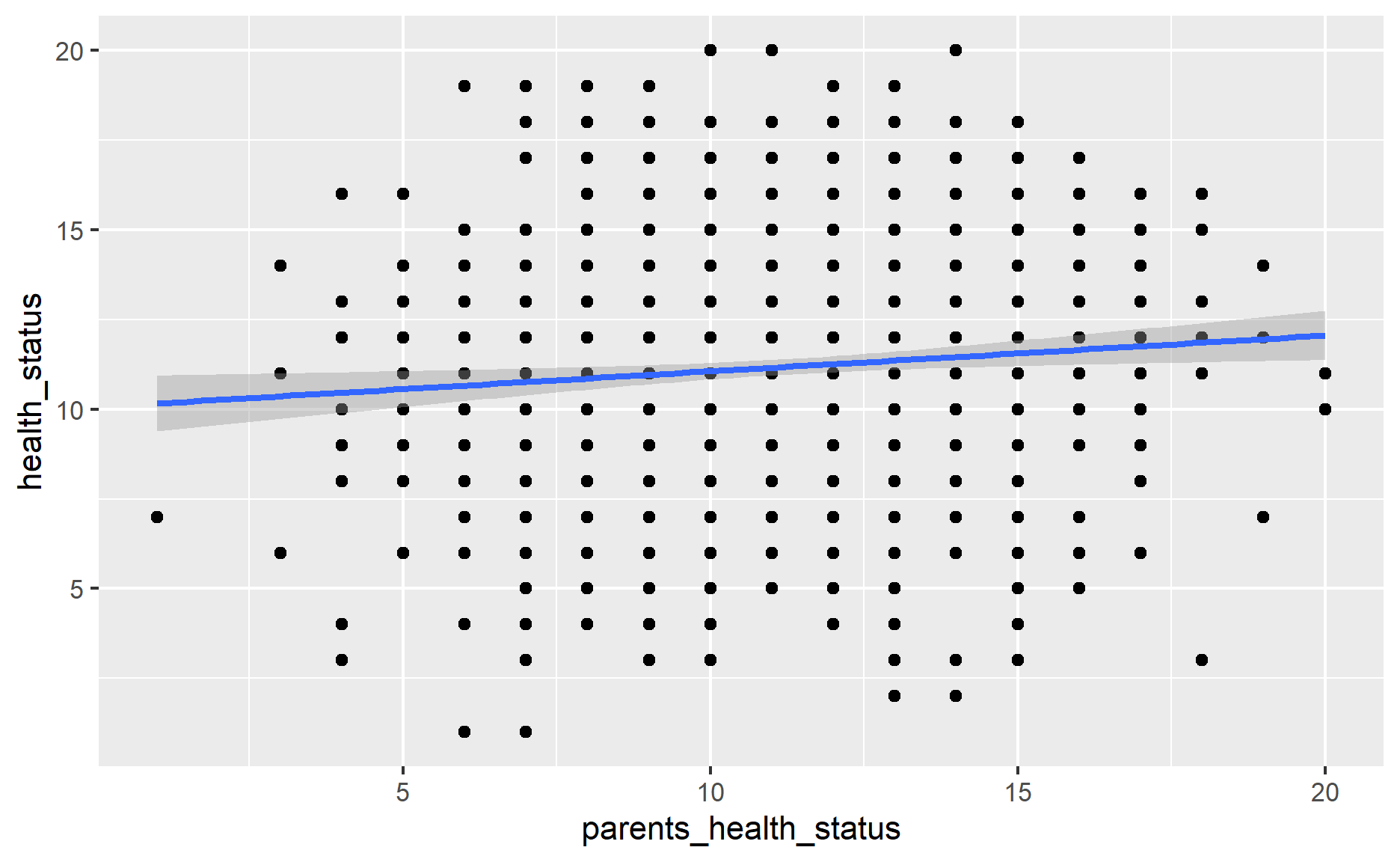

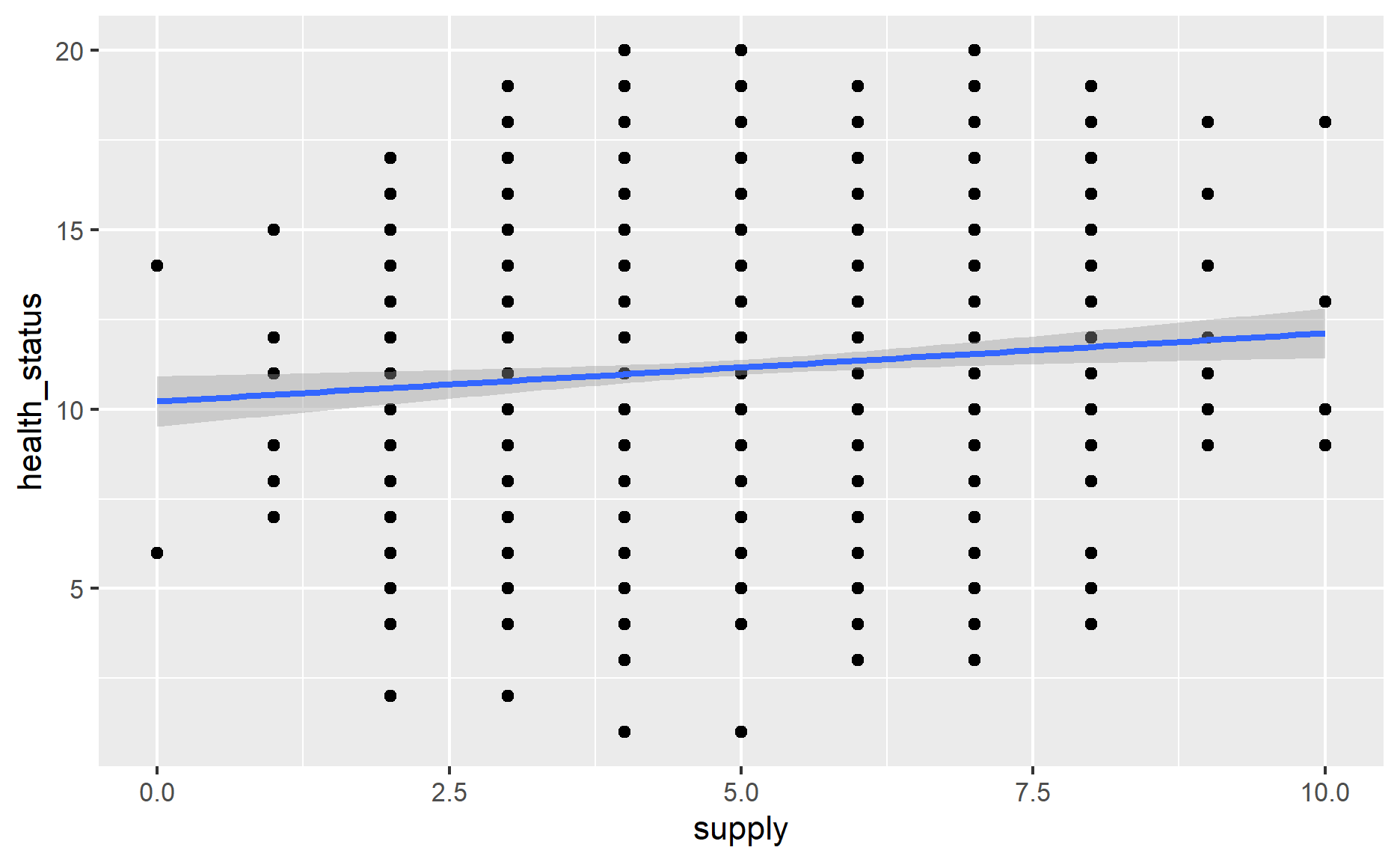

We could plot out the chart between the outcome (i.e., health_status) and the respective variables.

for(i in var_list){
  print(
    ggplot(housing, aes(!!sym(i), health_status)) +
      geom_point() +
      geom_smooth(method = "lm")
  )
}

It seems like waiting_time is more correlated with health_status as compared to other variables.

Nevertheless, this test also requires us to use domain knowledge to check whether the selected variable pass this test.

Exogeneity

Again there is no statistical test available for exogeneity. Hence, we have to use to domain knowledge to determine whether the selected variable pass this test.

For simplicity, I will skip this in this analysis.

Model Building

Once we have checked the instrument validity, we can start estimating the causal effect.

Over here, I will be using iv_robust function to estimate the causal effect.

This function allows us to perform a two-stage linear regression to estimate the causal effect.

model_iv_supply <-
  iv_robust(health_status ~ public_housing | supply
            ,data = housing)

tidy(model_iv_supply)

            term  estimate  std.error statistic      p.value
1    (Intercept) 3.1515039 0.92925507  3.391430 7.225586e-04
2 public_housing 0.2605848 0.03008957  8.660303 1.866986e-17
   conf.low conf.high  df       outcome
1 1.3279859 4.9750218 998 health_status
2 0.2015387 0.3196308 998 health_status

We also use glance function to extract the model fit results.

glance(model_iv_supply)

      r.squared adj.r.squared df.residual nobs se_type statistic
value 0.8992813     0.8991803         998 1000     HC2  75.00085
           p.value statistic.weakinst p.value.weakinst
value 1.866986e-17                 NA               NA
      statistic.endogeneity p.value.endogeneity statistic.overid
value                    NA                  NA               NA
      p.value.overid
value             NA

I will estimate the effect by using parent_health_status and waiting_time respectively.

model_iv_parents_health <-
  iv_robust(health_status ~ public_housing | parents_health_status
            ,data = housing)

tidy(model_iv_parents_health)

            term   estimate  std.error  statistic      p.value
1    (Intercept) -0.1793061 1.21697360 -0.1473377 8.828953e-01
2 public_housing  0.3688158 0.03954757  9.3258765 6.882340e-20
    conf.low conf.high  df       outcome
1 -2.5674267 2.2088146 998 health_status
2  0.2912099 0.4464217 998 health_status

model_iv_waiting_time <-
  iv_robust(health_status ~ public_housing | waiting_time
            ,data = housing)

tidy(model_iv_waiting_time)

            term  estimate   std.error statistic       p.value
1    (Intercept) 4.2804039 0.235296328  18.19155  4.375792e-64
2 public_housing 0.2239024 0.007555483  29.63442 5.842195e-139
   conf.low conf.high  df       outcome
1 3.8186716 4.7421362 998 health_status
2 0.2090759 0.2387288 998 health_status

Awesome!

Now, we can compile all the model results into one table so that its easier to compare.

modelsummary(
  list("Forbidden" = model_forbidden
       ,"Naive" = model_naive
       ,"IV = 'Supply'" = model_iv_supply
       ,"IV = 'Parents Health'" = model_iv_parents_health
       ,"IV = 'waiting Time'" = model_iv_waiting_time)
  )

	Forbidden	Naive	IV = ‘Supply’	IV = ‘Parents Health’	IV = ‘waiting Time’
(Intercept)	0.555	1.254	3.152	-0.179	4.280
	(0.064)	(0.088)	(0.929)	(1.217)	(0.235)
public_housing	0.229	0.322	0.261	0.369	0.224
	(0.003)	(0.003)	(0.030)	(0.040)	(0.008)
health_behavior	0.268
	(0.008)
Num.Obs.	1000	1000	1000	1000	1000
R2	0.969	0.933	0.899	0.914	0.847
R2 Adj.	0.969	0.933	0.899	0.914	0.846
AIC	1853.1	2619.3	3033.8	2876.3	3455.1
BIC	1872.7	2634.1	3048.6	2891.0	3469.8
Log.Lik.	-922.531	-1306.668
F	15653.588	14000.142
RMSE	0.61	0.89	1.10	1.02	1.36

As shown in the table, the estimated causal effect would be incorrect if we ignore the confounding effect.

Also, it seems like waiting_time variable is indeed a good instrument to use.

Build the model by using two stage

Instead of using iv_robust function, we could also build a two-stage model to estimate the causal effect as shown below.

model_first <-
  lm(public_housing ~ waiting_time
     ,data = housing)

predict_first <-
  augment(model_first
          ,data = housing) %>%
  rename(public_housing_hat = .fitted)

model_second <-
  lm(health_status ~ public_housing_hat
     ,data = predict_first)

tidy(model_second)

# A tibble: 2 × 5
  term               estimate std.error statistic  p.value
  <chr>                 <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)           4.28     0.545       7.85 1.04e-14
2 public_housing_hat    0.224    0.0174     12.9  3.55e-35

Ta-da!

We could see that the estimated causal effect is same as the one under iv_robust function.

Control for other variables

We could also control the effect of other variables while estimating the causal effect.

To do so, we have to include those variables into both stages as shown below.

model_iv_waiting_time_controlled <-
  iv_robust(health_status ~ public_housing + race + education + age + marital_status | waiting_time + race + education + age + marital_status
            ,data = housing)

tidy(model_iv_waiting_time_controlled)

              term    estimate   std.error  statistic       p.value
1      (Intercept)  1.41883384 0.380861836  3.7253243  2.061139e-04
2   public_housing  0.22429895 0.007261741 30.8877632 3.691474e-147
3            race2  0.03141104 0.119589666  0.2626568  7.928698e-01
4            race3  0.30135687 0.119943739  2.5124852  1.214677e-02
5            race4  0.03248473 0.116389143  0.2791045  7.802231e-01
6       education2 -0.01114892 0.118131864 -0.0943769  9.248289e-01
7       education3 -0.11609208 0.114754675 -1.0116545  3.119510e-01
8       education4 -0.04916515 0.113449780 -0.4333648  6.648443e-01
9              age  0.06185093 0.006942367  8.9091986  2.426774e-18
10 marital_status2  0.07870711 0.114819403  0.6854862  4.931980e-01
11 marital_status3  0.01700451 0.115060116  0.1477880  8.825402e-01
12 marital_status4  0.09651370 0.113038878  0.8538098  3.934174e-01
      conf.low conf.high  df       outcome
1   0.67144277 2.1662249 988 health_status
2   0.21004874 0.2385492 988 health_status
3  -0.20326789 0.2660900 988 health_status
4   0.06598312 0.5367306 988 health_status
5  -0.19591360 0.2608831 988 health_status
6  -0.24296710 0.2206693 988 health_status
7  -0.34128298 0.1090988 988 health_status
8  -0.27179536 0.1734651 988 health_status
9   0.04822745 0.0754744 988 health_status
10 -0.14661080 0.3040250 988 health_status
11 -0.20878578 0.2427948 988 health_status
12 -0.12531017 0.3183376 988 health_status

Conclusion

That’s all for the day!

Thanks for reading the post until the end.

Feel free to contact me through email or LinkedIn if you have any suggestions on future topics to share.

Refer to this link for the blog disclaimer.

Till next time, happy learning!

Photo by Tadas Mikuckis on Unsplash

Bobbitt, Zach. 2020. “Instrumental Variables: Definition & Examples.” https://www.statology.org/instrumental-variables/#:~:text=An%20instrumental%20variable%20should%20only%20be%20used%20if,is%20not%20correlated%20with%20exercise%2C%20diet%2C%20or%20stress%29.

Huntington-Klein, Nick. 2023. Chpater 19 - Instrumental Variables. https://theeffectbook.net/ch-InstrumentalVariables.html.

Causal Inference - Instrumental Variable
