What is ordinal data?

Ordinal data is a form of categorical data that has a meaningful order among its categories (Geeks for geeks 2023).

Following are some examples of ordinal data:

Likert scales
Preference of ranking

Why can’t we use Ordinary Least Square to analyze ordinal data?

(IBM 2023) explained that usual linear regression does not work well on ordinal data. The usual linear regression assumes the dependent variable is measured on interval scale.

Linear regression is also sensitive to the way you define categories of the target variable. With an ordinal variable, the important thing is the ordering of categories. So, if you collapse two adjacent categories into one larger category, you are making only a small change, and models built using the old and new categorizations should be very similar. Unfortunately, because linear regression is sensitive to the categorization used, a model built before merging categories could be quite different from one built after.

What do we do if the proportional odds assumption does not hold for the fitted model?

Below are some ways to handle when the proportional odds assumption fail (McNulty 2024):

Simplify the model by removing the variables (e.g., removing those fail the test)
Fit other types of models (e.g., multinomial logistic regression, adjacent-category logistic model, continuation-ratio logistic model etc)

Demonstration

In this demosntration, I will be using several methods to fit an ordinal logistic regression.

pacman::p_load(tidyverse, tidymodels, janitor, MASS, car, VGAM, brant, gofcat)

Import Data

I will be using this body performance dataset I found on Kaggle for this demonstration.

df <- read_csv("data/bodyPerformance.csv") %>%
  clean_names() %>% # clean up the column naming
  mutate(class = factor(class, levels = c("D", "C", "B", "A"))) # convert the target variable to factor and define the order of the levels

Model Building

Now, let’s start building the ordinal logistic regression!

`polr` function from `MASS` package

First, I will be using the polr function from MASS package.

polr_fit <-
  polr(class ~ age
       + gender
       + height_cm
       + weight_kg
       + body_fat_percent
       + diastolic
       + systolic
       + grip_force
       + sit_ups_counts
       + broad_jump_cm
       ,data = df
       ,Hess = TRUE)

summary(polr_fit)

Call:
polr(formula = class ~ age + gender + height_cm + weight_kg +
    body_fat_percent + diastolic + systolic + grip_force + sit_ups_counts +
    broad_jump_cm, data = df, Hess = TRUE)

Coefficients:
                     Value Std. Error t value
age               0.098021  0.0019150  51.186
genderM          -4.274917  0.0840451 -50.865
height_cm        -0.002478  0.0016420  -1.509
weight_kg        -0.084318  0.0031316 -26.925
body_fat_percent -0.041632  0.0040857 -10.190
diastolic        -0.007484  0.0022090  -3.388
systolic          0.006783  0.0016736   4.053
grip_force        0.099736  0.0037366  26.692
sit_ups_counts    0.143178  0.0025244  56.718
broad_jump_cm     0.021129  0.0009614  21.977

Intercepts:
    Value     Std. Error t value
D|C    5.6697    0.0024  2405.1223
C|B    7.6236    0.0304   250.8891
B|A    9.4533    0.0405   233.5223

Residual Deviance: 26656.33
AIC: 26682.33

According to the documentation, this model is also known as ‘cumulative link model’.

Note that we need to specify Hess to be TRUE, so that the standard errors will be computed.

Note that the intercepts also sometimes known as ‘cutpoints’.

We can obtain the odd by taking exponential on the coefficients of the variables.

as.data.frame(exp(coef(polr_fit)))

                 exp(coef(polr_fit))
age                        1.1029857
genderM                    0.0139132
height_cm                  0.9975252
weight_kg                  0.9191389
body_fat_percent           0.9592222
diastolic                  0.9925436
systolic                   1.0068061
grip_force                 1.1048797
sit_ups_counts             1.1539346
broad_jump_cm              1.0213535

Example on how we interpret the results:

If all else being equal, switching from female to male, the odd of moving up the class is 0.014

df %>%
  group_by(gender, class) %>%
  tally() %>%
  group_by(gender) %>%
  mutate(perc = n/sum(n)) %>%
  ggplot(aes(gender, class, fill = perc)) +
  geom_tile()

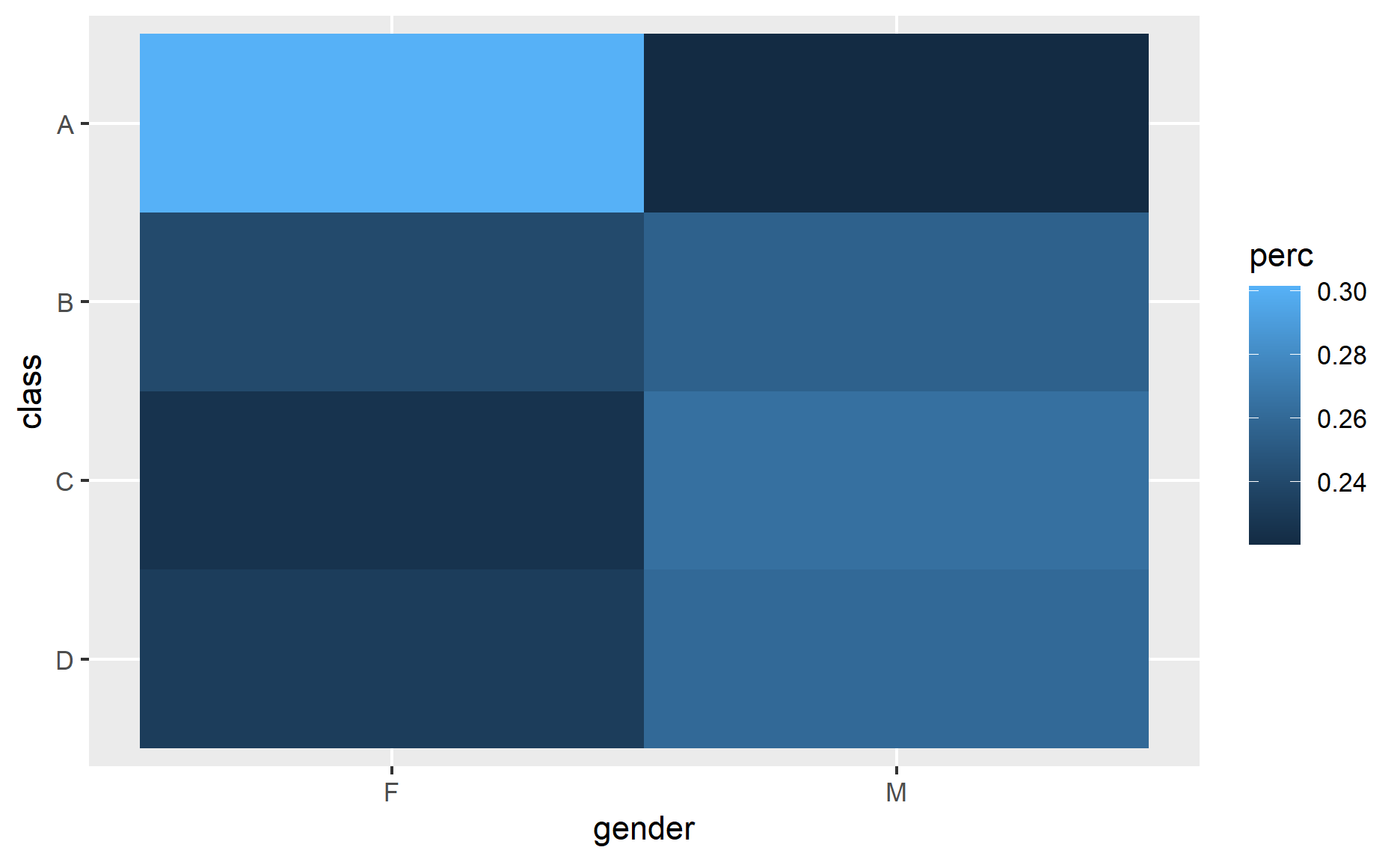

If we were to visualize the proportion of male and female within each class, we could see that within each gender, the proportion of class A is higher for female.

The function also allows nonlinear transformation on the variable and interactions as shown below.

polr_fit_complex <-
  polr(class ~ poly(age, 3) * gender
       + sit_ups_counts
       ,data = df
       ,Hess = TRUE)

polr_fit_complex

Call:
polr(formula = class ~ poly(age, 3) * gender + sit_ups_counts,
    data = df, Hess = TRUE)

Coefficients:
        poly(age, 3)1         poly(age, 3)2         poly(age, 3)3
           97.8324929            19.1136465            11.4424783
              genderM        sit_ups_counts poly(age, 3)1:genderM
           -2.7216160             0.1713085            49.2028893
poly(age, 3)2:genderM poly(age, 3)3:genderM
           -9.6848689            11.8204803

Intercepts:
     D|C      C|B      B|A
3.406247 5.089025 6.707173

Residual Deviance: 29283.65
AIC: 29305.65

To compute the anova, the base R anova function does not support polr object at point of writing, hence we need to use the Anova function from car package.

Over here, I will use type 2 and I will leave the exploration of different types of anova in future post.

Anova(polr_fit, type = 2)

Analysis of Deviance Table (Type II tests)

Response: class
                 LR Chisq Df Pr(>Chisq)
age                2587.0  1  < 2.2e-16 ***
gender             2816.9  1  < 2.2e-16 ***
height_cm             0.3  1   0.568298
weight_kg           550.7  1  < 2.2e-16 ***
body_fat_percent     76.8  1  < 2.2e-16 ***
diastolic            11.5  1   0.000706 ***
systolic             16.1  1   6.03e-05 ***
grip_force          754.7  1  < 2.2e-16 ***
sit_ups_counts     3729.5  1  < 2.2e-16 ***
broad_jump_cm       485.4  1  < 2.2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Based on the results from anova function, we could see that sit_ups_counts is the most importance variable.

`vglm` function from `VGAM` package

Alternatively, we could use the vglm function from VGAM package to fit an ordinal logistic regression model.

vglm_fit <-
  vglm(class ~ age
       + gender
       + height_cm
       + weight_kg
       + body_fat_percent
       + diastolic
       + systolic
       + grip_force
       + sit_ups_counts
       + broad_jump_cm
       ,data = df
       ,family = cumulative(parallel = TRUE))

summary(vglm_fit)


Call:
vglm(formula = class ~ age + gender + height_cm + weight_kg +
    body_fat_percent + diastolic + systolic + grip_force + sit_ups_counts +
    broad_jump_cm, family = cumulative(parallel = TRUE), data = df)

Coefficients:
                   Estimate Std. Error z value Pr(>|z|)
(Intercept):1     5.6696708  0.7152252   7.927 2.24e-15 ***
(Intercept):2     7.6236669  0.7168194  10.635  < 2e-16 ***
(Intercept):3     9.4533458  0.7182343  13.162  < 2e-16 ***
age              -0.0980207  0.0020581 -47.626  < 2e-16 ***
genderM           4.2749125  0.0863356  49.515  < 2e-16 ***
height_cm         0.0024777  0.0043361   0.571 0.567719
weight_kg         0.0843179  0.0036289  23.235  < 2e-16 ***
body_fat_percent  0.0416324  0.0046994   8.859  < 2e-16 ***
diastolic         0.0074843  0.0022184   3.374 0.000742 ***
systolic         -0.0067830  0.0016959  -4.000 6.34e-05 ***
grip_force       -0.0997362  0.0037031 -26.933  < 2e-16 ***
sit_ups_counts   -0.1431773  0.0025642 -55.837  < 2e-16 ***
broad_jump_cm    -0.0211287  0.0009837 -21.479  < 2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Names of linear predictors: logitlink(P[Y<=1]), logitlink(P[Y<=2]),
logitlink(P[Y<=3])

Residual deviance: 26656.33 on 40166 degrees of freedom

Log-likelihood: -13328.17 on 40166 degrees of freedom

Number of Fisher scoring iterations: 7

No Hauck-Donner effect found in any of the estimates


Exponentiated coefficients:
             age          genderM        height_cm        weight_kg
       0.9066302       71.8738468        1.0024808        1.0879747
body_fat_percent        diastolic         systolic       grip_force
       1.0425112        1.0075123        0.9932400        0.9050761
  sit_ups_counts    broad_jump_cm
       0.8666004        0.9790930

Note that we need to specify the parallel is TRUE so that the function will fit a proportional odds ordinal logistic regression, otherwise the coefficients for the variables (i.e., the slopes) would be different for each class.

We could make some variables with different coefficients by indicating parallel to FALSE and passing the variables name into cumulative argument.

vglm_fit_partial <-
  vglm(class ~ age
       + gender
       + height_cm
       + weight_kg
       + body_fat_percent
       + diastolic
       + systolic
       + grip_force
       + sit_ups_counts
       + broad_jump_cm
       ,data = df
       ,family = cumulative(parallel = FALSE ~ gender))

summary(vglm_fit_partial)


Call:
vglm(formula = class ~ age + gender + height_cm + weight_kg +
    body_fat_percent + diastolic + systolic + grip_force + sit_ups_counts +
    broad_jump_cm, family = cumulative(parallel = FALSE ~ gender),
    data = df)

Coefficients:
                   Estimate Std. Error z value Pr(>|z|)
(Intercept):1     5.6471585  0.7156459   7.891 3.00e-15 ***
(Intercept):2     7.5266726  0.7176556  10.488  < 2e-16 ***
(Intercept):3     9.2563531  0.7198305  12.859  < 2e-16 ***
age              -0.0981014  0.0020595 -47.634  < 2e-16 ***
genderM:1         4.1361953  0.0956351  43.250  < 2e-16 ***
genderM:2         4.2486122  0.0908969  46.741  < 2e-16 ***
genderM:3         4.4101957  0.0936565  47.089  < 2e-16 ***
height_cm         0.0031557  0.0043399   0.727 0.467146
weight_kg         0.0843494  0.0036292  23.242  < 2e-16 ***
body_fat_percent  0.0418385  0.0047024   8.897  < 2e-16 ***
diastolic         0.0076836  0.0022195   3.462 0.000536 ***
systolic         -0.0068132  0.0016965  -4.016 5.92e-05 ***
grip_force       -0.1006016  0.0037108 -27.110  < 2e-16 ***
sit_ups_counts   -0.1426206  0.0025685 -55.527  < 2e-16 ***
broad_jump_cm    -0.0211537  0.0009841 -21.495  < 2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Names of linear predictors: logitlink(P[Y<=1]), logitlink(P[Y<=2]),
logitlink(P[Y<=3])

Residual deviance: 26640.57 on 40164 degrees of freedom

Log-likelihood: -13320.28 on 40164 degrees of freedom

Number of Fisher scoring iterations: 7

No Hauck-Donner effect found in any of the estimates


Exponentiated coefficients:
             age        genderM:1        genderM:2        genderM:3
       0.9065570       62.5643266       70.0081896       82.2855685
       height_cm        weight_kg body_fat_percent        diastolic
       1.0031607        1.0880090        1.0427260        1.0077132
        systolic       grip_force   sit_ups_counts    broad_jump_cm
       0.9932100        0.9042932        0.8670830        0.9790684

From the result above, we could see that Hauck-Donner effect is checked when fitting the model by using vglm function.

Especially for categorical regression models such as the binary and polytomous logistic models, problems arise when a part of the covariate space yields an outcome probability of zero or one so that there is perfect separation in a covariate distribution (Jr 2024).

VGAM package has anova function to compute the necessary results.

anova(vglm_fit)

Analysis of Deviance Table (Type II tests)

Model: 'cumulative', 'VGAMordinal', 'VGAMcategorical'

Links: 'logitlink'

Response: class

                 Df Deviance Resid. Df Resid. Dev  Pr(>Chi)
age               1   2587.0     40167      29243 < 2.2e-16 ***
gender            1   2816.9     40167      29473 < 2.2e-16 ***
height_cm         1      0.3     40167      26657  0.568298
weight_kg         1    550.7     40167      27207 < 2.2e-16 ***
body_fat_percent  1     76.8     40167      26733 < 2.2e-16 ***
diastolic         1     11.5     40167      26668  0.000706 ***
systolic          1     16.1     40167      26672  6.03e-05 ***
grip_force        1    754.7     40167      27411 < 2.2e-16 ***
sit_ups_counts    1   3729.5     40167      30386 < 2.2e-16 ***
broad_jump_cm     1    485.4     40167      27142 < 2.2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Test Proportional Odds Assumptions

There are a few approaches to check the proportional odds assumption.

Method 1: Use `anova` to compare the models with proportional odds and without

vglm_fit_same_slope <-
  vglm(class ~ age
       ,data = df
       ,family = cumulative(parallel = TRUE))

summary(vglm_fit_same_slope)


Call:
vglm(formula = class ~ age, family = cumulative(parallel = TRUE),
    data = df)

Coefficients:
               Estimate Std. Error z value Pr(>|z|)
(Intercept):1 -1.416779   0.046880  -30.22  < 2e-16 ***
(Intercept):2 -0.315285   0.045237   -6.97 3.18e-12 ***
(Intercept):3  0.785972   0.045792   17.16  < 2e-16 ***
age            0.008572   0.001137    7.54 4.72e-14 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Names of linear predictors: logitlink(P[Y<=1]), logitlink(P[Y<=2]),
logitlink(P[Y<=3])

Residual deviance: 37075.95 on 40175 degrees of freedom

Log-likelihood: -18537.98 on 40175 degrees of freedom

Number of Fisher scoring iterations: 3

No Hauck-Donner effect found in any of the estimates


Exponentiated coefficients:
     age
1.008609

vglm_fit_different_slope <-
  vglm(class ~ age
       ,data = df
       ,family = cumulative(parallel = FALSE))

summary(vglm_fit_different_slope)


Call:
vglm(formula = class ~ age, family = cumulative(parallel = FALSE),
    data = df)

Coefficients:
               Estimate Std. Error z value Pr(>|z|)
(Intercept):1 -1.433072   0.057829 -24.781  < 2e-16 ***
(Intercept):2 -0.238418   0.049814  -4.786 1.70e-06 ***
(Intercept):3  0.694992   0.057426  12.102  < 2e-16 ***
age:1          0.009001   0.001443   6.237 4.47e-10 ***
age:2          0.006496   0.001271   5.112 3.19e-07 ***
age:3          0.011136   0.001506   7.392 1.45e-13 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Names of linear predictors: logitlink(P[Y<=1]), logitlink(P[Y<=2]),
logitlink(P[Y<=3])

Residual deviance: 37060.53 on 40173 degrees of freedom

Log-likelihood: -18530.26 on 40173 degrees of freedom

Number of Fisher scoring iterations: 3

No Hauck-Donner effect found in any of the estimates


Exponentiated coefficients:
   age:1    age:2    age:3
1.009041 1.006518 1.011198

anova(vglm_fit_same_slope, vglm_fit_different_slope, type = 1)

Analysis of Deviance Table

Model 1: class ~ age
Model 2: class ~ age
  Resid. Df Resid. Dev Df Deviance  Pr(>Chi)
1     40175      37076
2     40173      37061  2   15.422 0.0004478 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Method 2: Use other packages to check

However, these functions have some limitations at the point of writing:

brant function is not able to support models in S4 class
Both functions seem to be unable to handle poly function, but interactions are fine

gofcat::brant.test(vglm_fit)


Brant Test:
                    chi-sq   df   pr(>chi)
Omnibus             309.31   20    < 2e-16 ***
age                   1.35    2      0.508
genderM              22.97    2    1.0e-05 ***
height_cm            29.35    2    4.2e-07 ***
weight_kg            37.25    2    8.2e-09 ***
body_fat_percent     32.96    2    6.9e-08 ***
diastolic             1.44    2      0.487
systolic              2.93    2      0.231
grip_force            7.70    2      0.021 *
sit_ups_counts        5.77    2      0.056 .
broad_jump_cm        44.48    2    2.2e-10 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

H0: Proportional odds assumption holds

brant(polr_fit)

----------------------------------------------------
Test for        X2  df  probability
----------------------------------------------------
Omnibus         309.31  20  0
age         1.35    2   0.51
genderM         22.97   2   0
height_cm       29.35   2   0
weight_kg       37.25   2   0
body_fat_percent    32.96   2   0
diastolic       1.44    2   0.49
systolic        2.93    2   0.23
grip_force      7.7 2   0.02
sit_ups_counts      5.77    2   0.06
broad_jump_cm       44.48   2   0
----------------------------------------------------

H0: Parallel Regression Assumption holds

From the results above, as p-value is less than 0.05, we would reject null hypothesis and conclude that there is statistical evidence that proportional odds assumption does not hold.

The test also shows us which variable does not fulfill the proportional odds assumption.

Method 3: Extract the model output to conduct the statistical test

Another apporach to check the proportion odds assumption is by using the formula below mentioned on this course website.

g2_prop = 2*(logLik(vglm_fit_different_slope) - logLik(vglm_fit_same_slope))
df_prop = df.residual(vglm_fit_same_slope) - df.residual(vglm_fit_different_slope)
1 - pchisq(g2_prop, df_prop)
